Heads Up! On An “Eyes Up” Contact Lens Display
Have you ever asked yourself, “How can I see the display of my cellphone (or any enterprise mobility device) without having to use my hands?”
Well, it looks as though the researchers at the University of Washington have asked themselves the same question and set about doing something to address this perceived need.
Eyes with a contact lens that contains circuits that will display images one can see while going about ones business.

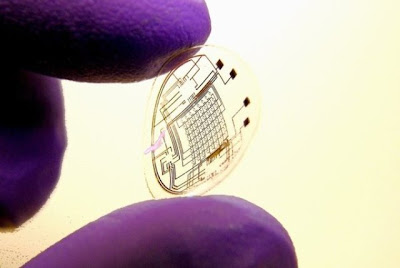

Contact lenses with metal connectors for electronic circuits were safely worn by rabbits in lab tests. The lenses were manufactured at the microscopic level by researchers at the UW. Image Credit: University of Washington
The prototype contact lens device contains an electric circuit as well as red light-emitting diodes for a display, though it does not yet light up. The lenses were tested on rabbits for up to 20 minutes and the animals showed no adverse effects.
This excerpt from University Week (University of Washington) –
Bionic eyes: Contact lenses with circuits, lights a possible platform for superhuman vision
By Hannah Hickey - News and Information - Jan. 17, 2008
Movie characters from the Terminator to the Bionic Woman use bionic eyes to zoom in on far-off scenes, have useful facts pop into their field of view, or create virtual crosshairs. Off the screen, virtual displays have been proposed for more practical purposes -- visual aids to help vision-impaired people, holographic driving control panels and even as a way to surf the Web on the go.
The device to make this happen may be familiar. Engineers at the UW have for the first time used manufacturing techniques at microscopic scales to combine a flexible, biologically safe contact lens with an imprinted electronic circuit and lights.
"Looking through a completed lens, you would see what the display is generating superimposed on the world outside," said Babak Parviz, a UW assistant professor of electrical engineering. "This is a very small step toward that goal, but I think it's extremely promising."
The results were presented today at the Institute of Electrical and Electronics Engineers' international conference on Micro Electro Mechanical Systems by Harvey Ho, a former graduate student of Parviz's now working at Sandia National Laboratories in Livermore, Calif. Other co-authors are Ehsan Saeedi and Samuel Kim in the UW's electrical engineering department and Tueng Shen in the UW Medical Center's ophthalmology department.
There are many possible uses for virtual displays. Drivers or pilots could see a vehicle's speed projected onto the windshield. Video game companies could use the contact lenses to completely immerse players in a virtual world without restricting their range of motion. And for communications, people on the go could surf the Internet on a midair virtual display screen that only they would be able to see.
Example Of A Heads Up Display (HUD) On A F16 - What A Pilot Sees! YouTube Video Credit: src66
Ideally, installing or removing the bionic eye would be as easy as popping a contact lens in or out, and once installed the wearer would barely know the gadget was there, Parviz said.
Researchers built the circuits from layers of metal only a few nanometers thick, about one thousandth the width of a human hair, and constructed light-emitting diodes one third of a millimeter across. They then sprinkled the grayish powder of electrical components onto a sheet of flexible plastic. The shape of each tiny component dictates which piece it can attach to, a microfabrication technique known as self-assembly. Capillary forces -- the same type of forces that make water move up a plant's roots, and that cause the edge of a glass of water to curve upward -- pull the pieces into position.
The prototype contact lens does not correct the wearer's vision, but the technique could be used on a corrective lens, Parviz said. And all the gadgetry won't obstruct a person's view.
Future improvements will add wireless communication to and from the lens. The researchers hope to power the whole system using a combination of radio-frequency power and solar cells placed on the lens, Parviz said.
A full-fledged display won't be available for a while, but a version that has a basic display with just a few pixels could be operational "fairly quickly," according to Parviz.
